Thread protector caps

Art-Nr.: 01-01-014Hier finden Sie die Maßtabelle

Application areas

male thread

Downloads

PDF gewindeschutzkappen_datenblatt Download

Do you have any questions about this product ?

You are welcome to write us your question or call us at the following telephone number.

02163 / 499 151

Variants of the product

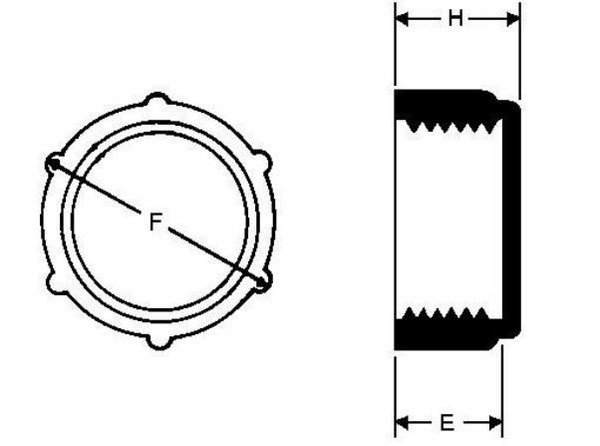

OrdernumberApplicationE (mm)F (mm)H (mm)UnitAction
01-01-014-001M8x18,012,012,01000Request offer / sample
01-01-014-002M10x110,015,012,01000Request offer / sample
01-01-014-003M12x110,517,012,51000Request offer / sample
01-01-014-004M12x1,510,517,512,51000Request offer / sample
01-01-014-005M14x1,510,519,013,01000Request offer / sample
01-01-014-006M16x18,522,011,5 1000Request offer / sample
01-01-014-007M16x1,511,022,012,21000Request offer / sample
01-01-014-008M18x1,510,524,513,01000Request offer / sample
01-01-014-009M20x1,511,026,013,5500Request offer / sample
01-01-014-010M22x1,512,028,014,0500Request offer / sample
01-01-014-011M24x1,512,029,513,5500Request offer / sample
01-01-014-012M25x1,512,031,013,5500Request offer / sample
01-01-014-013M26x1,512,533,014,5500Request offer / sample
01-01-014-014M27x1,513,034,015,0500Request offer / sample
01-01-014-015M29x1,5613,035,515,2500Request offer / sample
01-01-014-016M30x1,513,036,015,0250Request offer / sample
01-01-014-017M32x1,513,039,015,0250Request offer / sample
01-01-014-018M36x1,514,542,516,0250Request offer / sample
01-01-014-019M38x1,515,044,017,0250Request offer / sample
01-01-014-020M40x1,515,046,017,0250Request offer / sample
01-01-014-021M45x1,517,069,019,0250Request offer / sample
01-01-014-022M50x1,513,034,014,5250Request offer / sample
01-01-014-023M52x1,513,036,015,0100Request offer / sample
01-01-014-024M55x1,515,042,017,0100Request offer / sample
01-01-014-025M62x1,515,546,216,7100Request offer / sample
01-01-014-026M27x213,034,014,5250Request offer / sample
01-01-014-027M30x213,036,015,0250Request offer / sample
01-01-014-028M36x215,042,017,0250Request offer / sample
01-01-014-029M40x215,546,216,7250Request offer / sample
01-01-014-030M42x215,048,016,5250Request offer / sample
01-01-014-031M45x211,523,012,5100Request offer / sample
01-01-014-032M52x212,027,013,5100Request offer / sample
01-01-014-033R 1/8" x 2812,529,014,01000Request offer / sample
01-01-014-034R 1/4" x 1914,534,015,01000Request offer / sample
01-01-014-035R 3/8" x 1915,538,017,01000Request offer / sample
01-01-014-036R 1/2" x 1412,027,013,51000Request offer / sample
01-01-014-037R 5/8" x 1412,529,014,0500Request offer / sample
01-01-014-038R 3/4" x 1414,534,015,0500Request offer / sample
01-01-014-039R 7/8" x 1415,538,017,0500Request offer / sample
01-01-014-040R 1" x 1118,040,020,0250Request offer / sample
01-01-014-041R 1 1/4 x 1123,549,025,0250Request offer / sample
01-01-014-042R 1 1/2" x 1127,055,028,0250Request offer / sample
01-01-014-043R 1 3/4" x 1126,059,027,5100Request offer / sample
01-01-014-044R 2" x 1126,567,028,5100Request offer / sample
01-01-014-045UNF 1/4" x 2815,011,017,01000Request offer / sample
01-01-014-046UNF 5/16" x 2417,013,519,51000Request offer / sample
01-01-014-047UNF 3/16" x 3213,08,014,01000Request offer / sample
01-01-014-048NF 3/8" x 2417,015,019,01000Request offer / sample
01-01-014-049UNF 7/16" x 2018,017,022,01000Request offer / sample
01-01-014-050UNF 1/2" x 2019,519,022,01000Request offer / sample
01-01-014-051UNF 9/16" x 1821,521,024,01000Request offer / sample
01-01-014-052UNF 5/8" x 1821,021,523,0500Request offer / sample
01-01-014-053UNF 11/16" x 1623,026,025,0500Request offer / sample
01-01-014-054UNF 3/4" x 1626,028,027,5500Request offer / sample
01-01-014-055UNF 13/16" x 1626,529,028,0500Request offer / sample
01-01-014-056UNF 7/8" x 1426,529,028,0500Request offer / sample
01-01-014-057UNF 1" x 1625,532,028,0250Request offer / sample
01-01-014-058UNF 11/16" x 1626,034,028,0250Request offer / sample
01-01-014-059UNF 1 1/16" x 1225,034,028,0250Request offer / sample
01-01-014-060UNF 1 3/16" x 1225,037,027,0250Request offer / sample
01-01-014-061UNF 1 5/16" x 1226,540,028,0250Request offer / sample
01-01-014-062UNF 1 3/8" x 1226,542,028,0250Request offer / sample
01-01-014-063UNF 1 1/2" x 1226,045,028,0100Request offer / sample
01-01-014-064UNF 1 5/8" x 1226,048,028,0100Request offer / sample
01-01-014-065UNF 1 13/4" x 1226,051,028,0100Request offer / sample
01-01-014-066UNF 1 7/8" x 1226,555,028,5100Request offer / sample
